Heat sink for
electronic devices
Heat sink with high density and thin-walled fin made by brazing. It can cover heat condition which is difficult for classical extrusion or machining products.
High performance heat sink
- ・High performance heat sink by high density and thin-walled fin, which is difficult for classical extrusion material or machining. It is suitable for cooling high power processor for data sever, power supply, graphic, etc.
- ・Base plate and fins are brazed by SPP’s original technology,
and the brazed joint has good mechanical property.
- ・Custom-made design according to your requirement
- Suitable fin selection from various fin selection
- Available for wide range of size (Max. 1.3m by 1.8m plain)
About brazing sheet....
In case of Aluminum, filler metal is cladded onto and integrated with the brazing sheet. Filler metal has lower melting point than core material. By heating stacked core to temperature that do not melt core material but melts filler metal, the core is bonded.
*Possible fin pitch and thickness may be adjustable.
**Possible fin pitch and thickness may change depending on size of heat sink.
Performance data (for reference)
Calculation condition:
- Size of heat source is the same as heat sink.
- Air flow is fully surrounded with duct.
- Calculation for heat sink only.
Size: W120×L120×H80 (mm)
For both Corrugated fin and Plate brazed type
| Corrugated fin brazed type |
Plate brazed type |
|
|---|---|---|
| Fin pitch | (2.5)mm | (1.6)mm |
| Fin thickness | 0.6mm | 0.6mm |
| Base plate thickness |
10mm | 10mm |

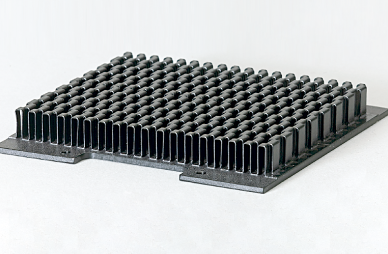

Single layered corrugated fin brazed heat sink
- ・Light and compact aluminum heat sink, due to high cooling performance by brazed corrugated fin.
27 kinds of standard heat sinks with serrated corrugate fins are available.
They are suitable for cooling solution for various electronic devices.
- ・Base plate and corrugated fin are produced with our original brazing technology.
It provides sound mechanical reliability.
- ・Flexible design according to your request.
- Shape and hole location can be changed for fitting your fixing and installation method.
- Available for various size range
- Can be widely used for electronic device cooling.
- Serrated fin type(Standard)
- Plain fin type (customized)
- Serrated fin type (customized)
- Serrated fin type (customized)
Performance data (for reference)
Calculation condition:
- Size of heat source is the same as heat sink.
- Calculation for heat sink only. Fully surrounded by duct.
| Type No. | Size（mm） |
|---|---|
| XH0105 | H5.5×W40×L40 |
| XH0114 | H9.3×W40×L40 |
| XH0123 | H13.6×W40×L40 |
Detail of standard heat sink
| Fin code | 180S1212 | 330S1212 | 500S1216 |
|---|---|---|---|
| Fin height(mm) | 4.6 | 8.4 | 12.7 |
| Fin pitch(mm) | (2.1) | (2.1) | (2.1) |
| Fin thickness(mm) | 0.3 | 0.3 | 0.4 |
| Fin code | H×W×L(mm) | Weight(g) |
|---|---|---|
| XH0100 | 5.5×20×20 | 1.9 |
| XH0101 | 5.5×24×24 | 2.8 |
| XH0102 | 5.5×28×28 | 3.8 |
| XH0103 | 5.5×32×32 | 5.0 |
| XH0104 | 5.5×36×36 | 6.4 |
| XH0105 | 5.5×40×40 | 7.9 |
| XH0106 | 5.5×44×44 | 9.6 |
| XH0107 | 5.5×48×48 | 11.5 |
| XH0108 | 5.5×52×52 | 13.5 |
| XH0109 | 9.3×20×20 | 2.4 |
| XH0110 | 9.3×24×24 | 3.5 |
| XH0111 | 9.3×28×28 | 4.9 |
| XH0112 | 9.3×32×32 | 6.4 |
| XH0113 | 9.3×36×36 | 8.2 |
| XH0114 | 9.3×40×40 | 10.2 |
| XH0115 | 9.3×44×44 | 12.4 |
| XH0116 | 9.3×48×48 | 14.8 |
| XH0117 | 9.3×52×52 | 17.5 |
| XH0118 | 13.6×20×20 | 3.6 |
| XH0119 | 13.6×24×24 | 5.3 |
| XH0120 | 13.6×28×28 | 7.3 |
| XH0121 | 13.6×32×32 | 9.7 |
| XH0122 | 13.6×36×36 | 12.4 |
| XH0123 | 13.6×20×20 | 15.5 |
| XH0124 | 13.6×40×40 | 18.9 |
| XH0125 | 13.6×44×44 | 22.6 |
| XH0126 | 13.6×52×52 | 26.7 |
